[Splunk] lecture DashBoard 1

해당 자료는 MDS의 Splunk 기초 교육의 내용을 실습하면서 정리한 사항이다.

강의 교재를 바탕으로 진행되었다.

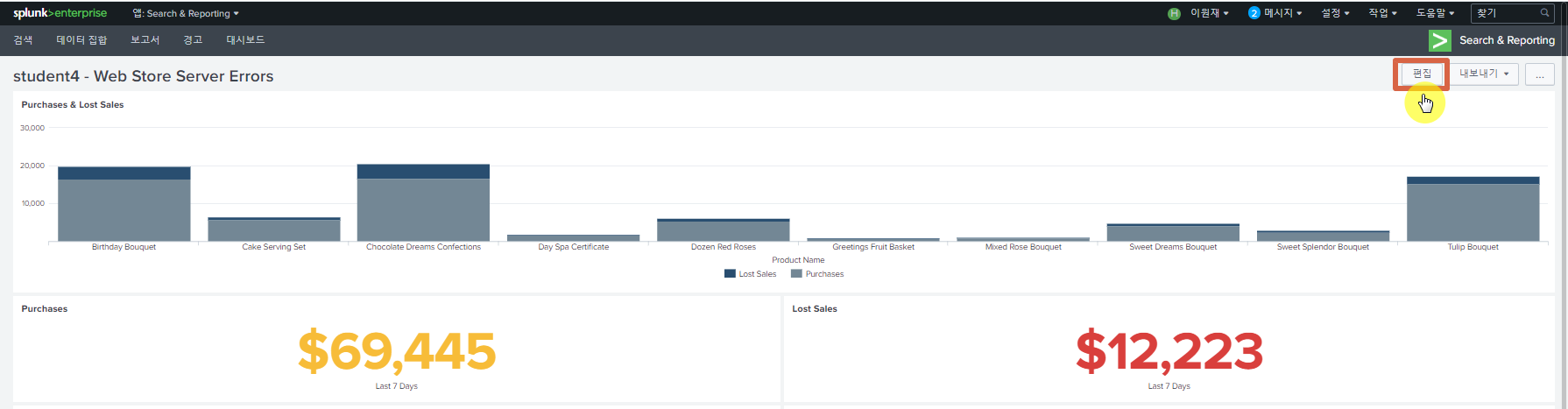

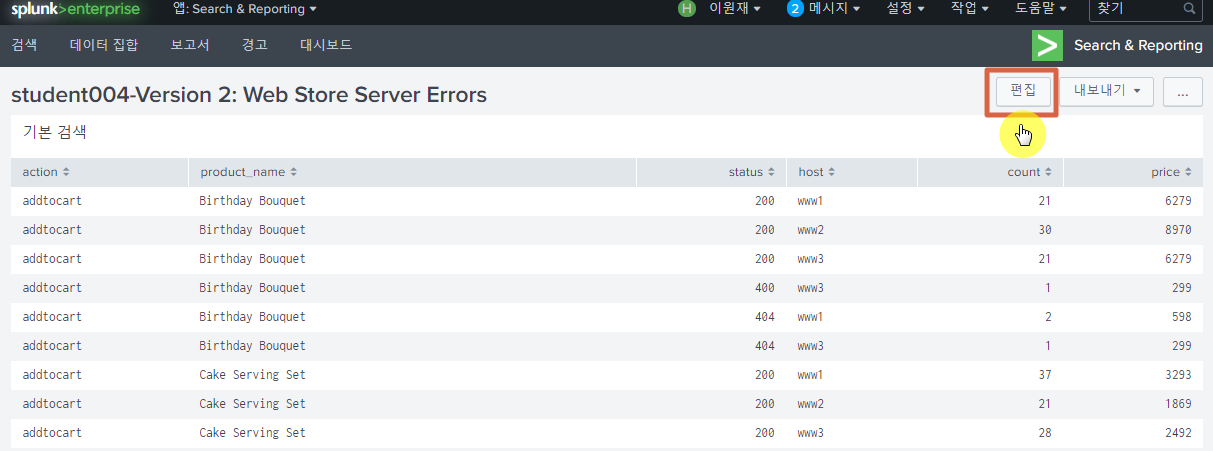

대시보드 → student4-web Store Server Errors를 선택한다.

편집을 클릭한다.

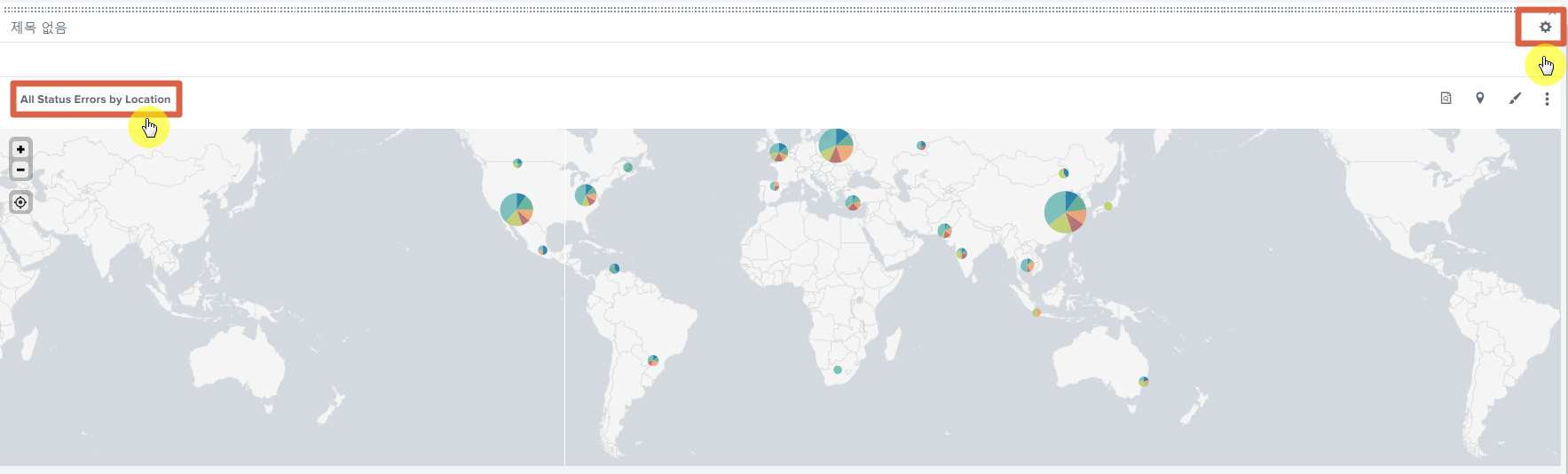

All Status Errors by Location에서 톱니바퀴를 선택한다.

미리 작성된 패널로 변환을 클릭한다.

id: student004_bcg_webstore_all_status_errors_by_location

---

검색에서 열기를 클릭한다.

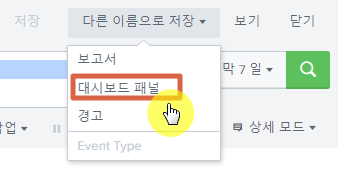

다른 이름으로 저장 → 대시보드 패널 을 선택한다.

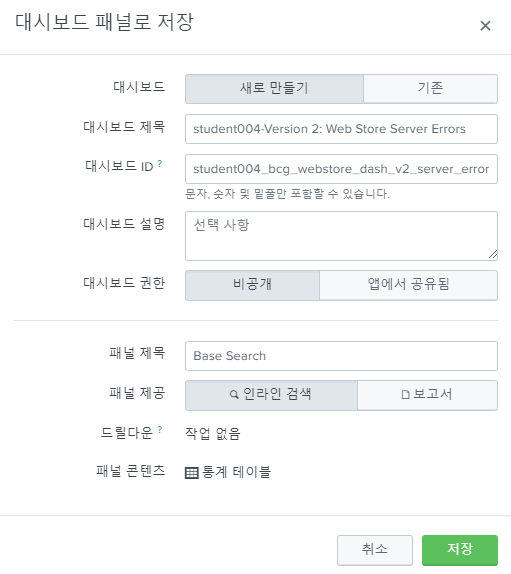

그리고 아래 내용을 입력한다.

category	입력값
대시보드	새로만들기
대시보드 제목	student004-Version 2: Web Store Server Errors
대시보드 ID	student004_bcg_webstore_dash_v2_server_errors
대시보드 설명
대시보드 권한	비공개
패널 제목	Base Search
패널 제공	인라인 검색
패널 콘텐츠	통계 테이블



입력결과

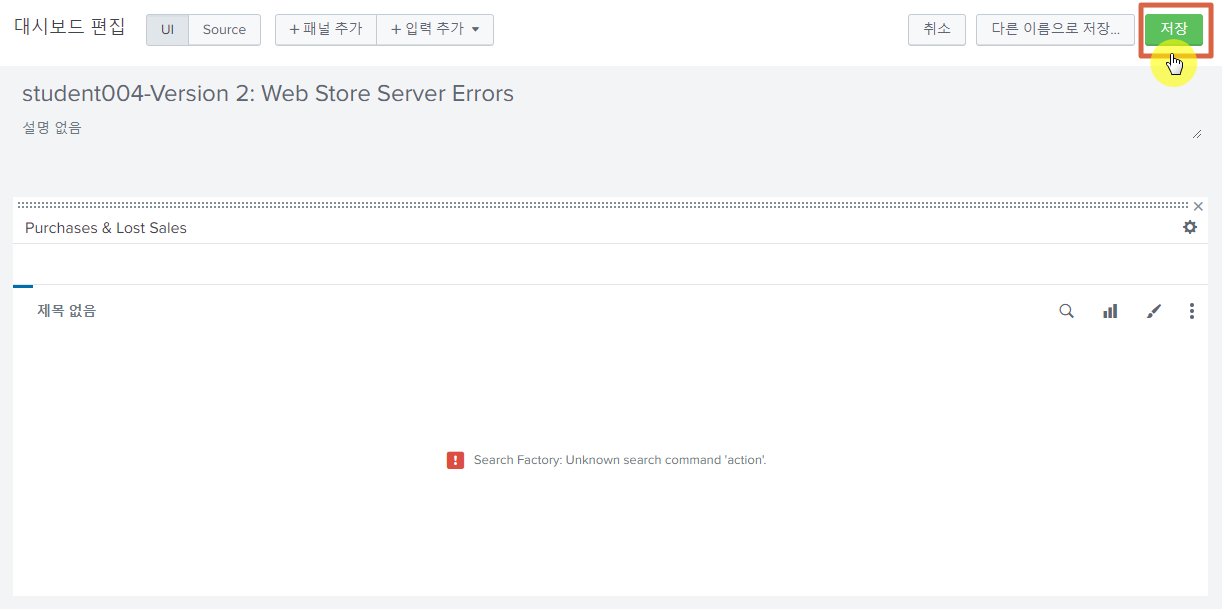

편집을 클릭한다.

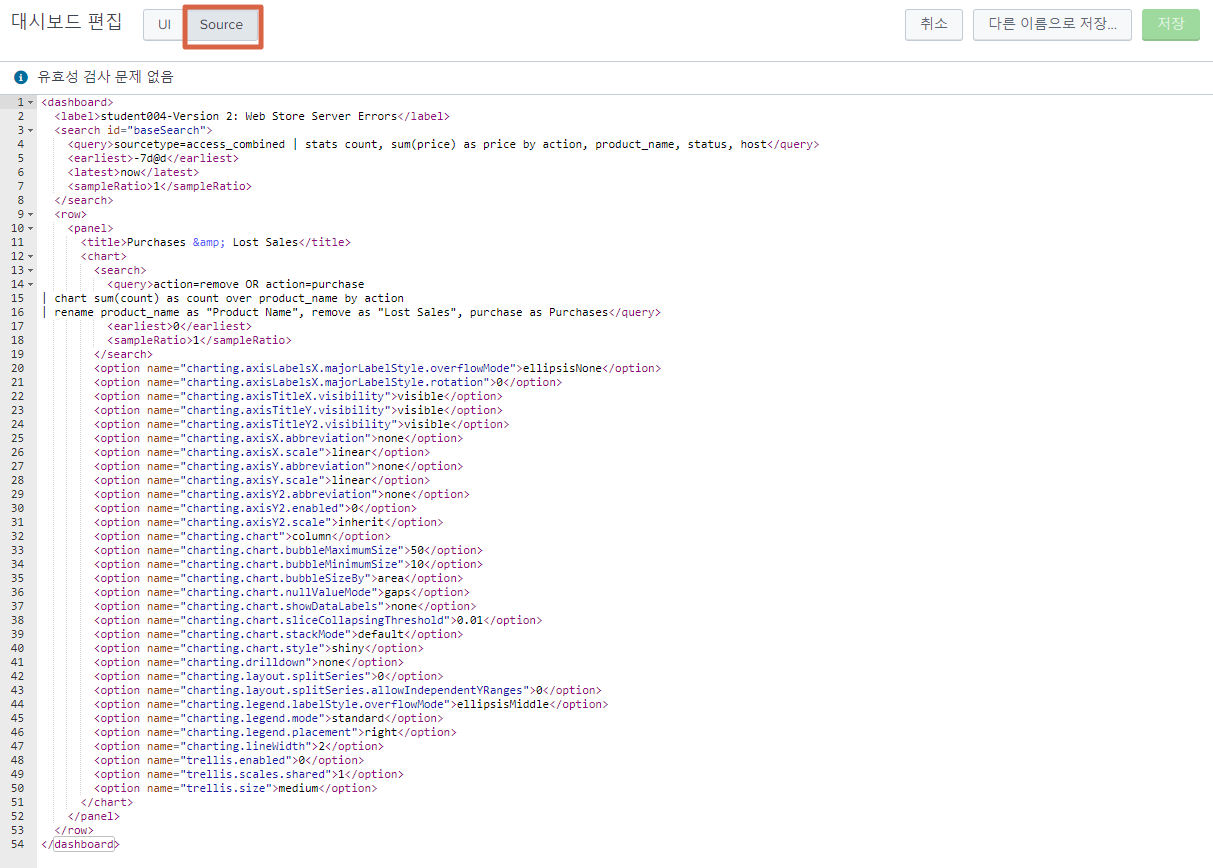

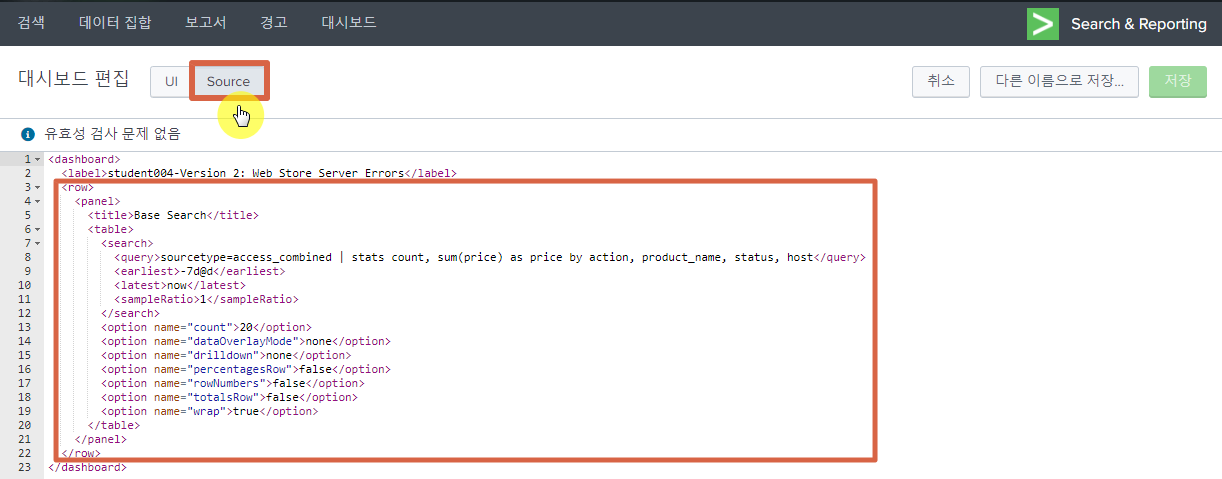

Source를 클릭하고 붉은색 박스의 내용에서 아래 내용으로 바꾼다.

<dashboard>
  <label>student004-Version 2: Web Store Server Errors</label>
  <search id="baseSearch">
          <query>sourcetype=access_combined | stats count, sum(price) as price by action, product_name, status, host</query>
          <earliest>-7d@d</earliest>
          <latest>now</latest>
          <sampleRatio>1</sampleRatio>
  </search>
</dashboard>

주의할 내용은 id="baseSearch"가 추가된 점을 유심하게 봐야한다.

---

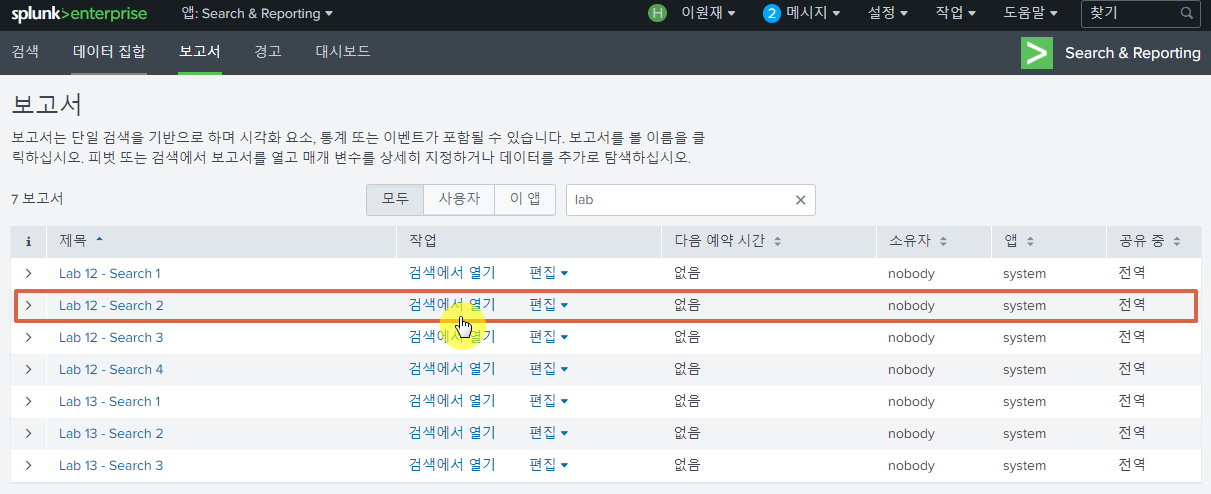

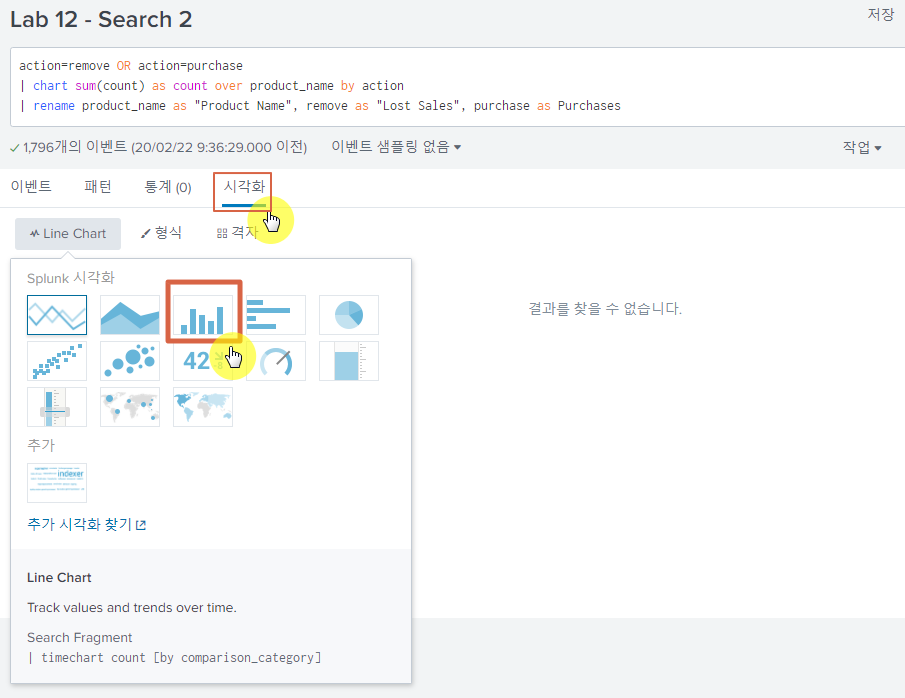

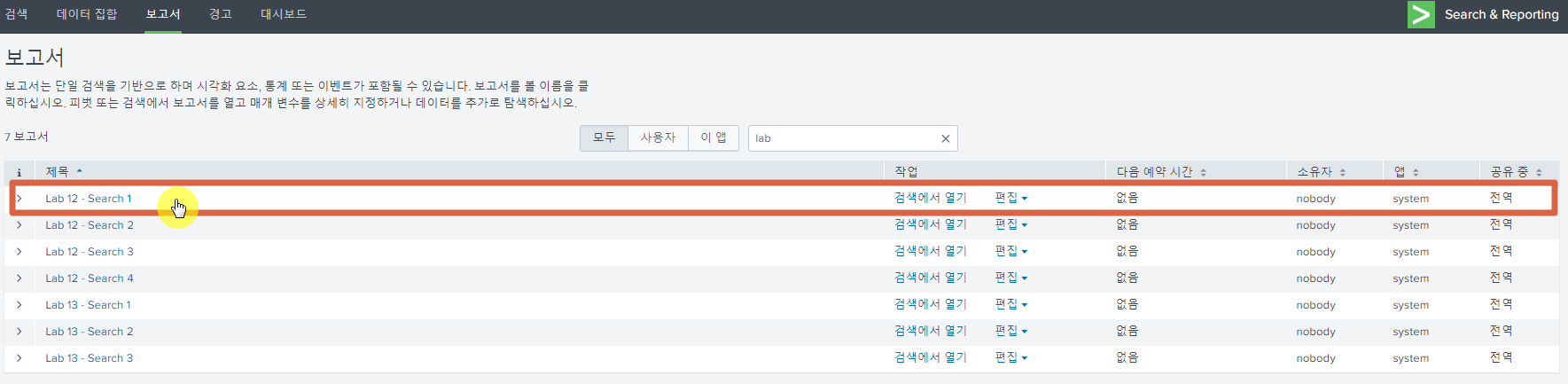

보고서 → Lab 12 - Search 2의 검색에서 열기 선택

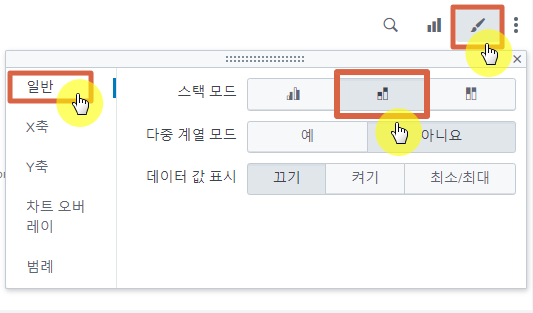

시각화 → Column Chart 를 선택한다.

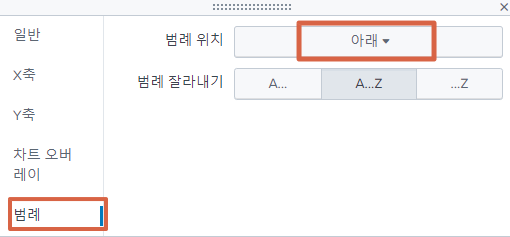

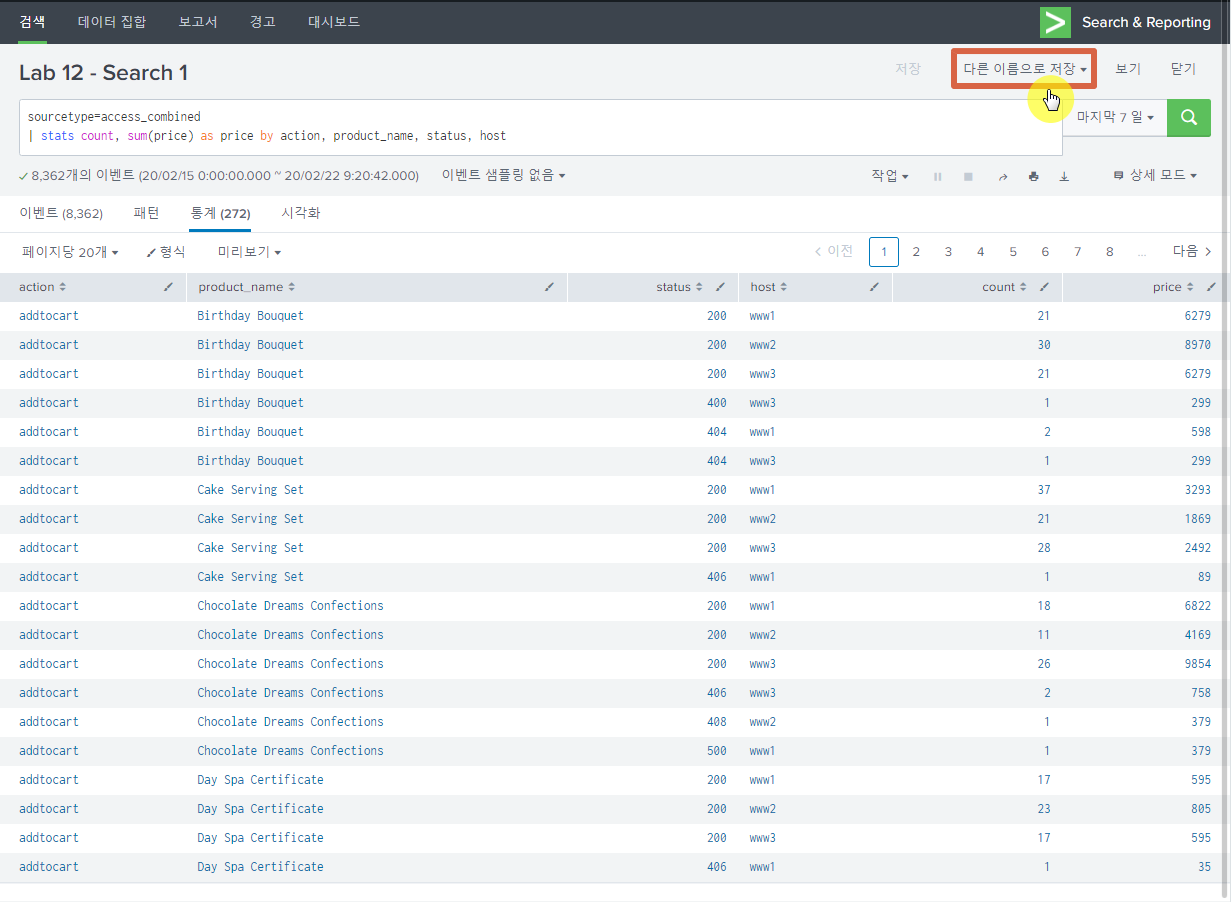

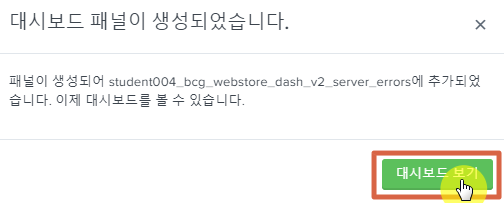

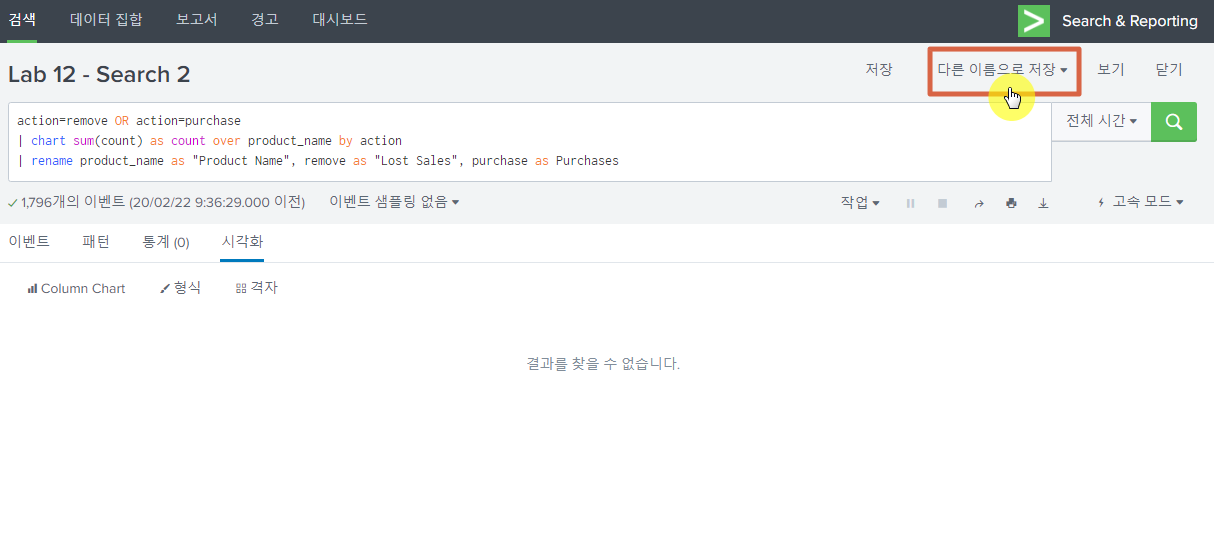

다른 이름으로 저장 → 대시보드패널 을 선택한다.

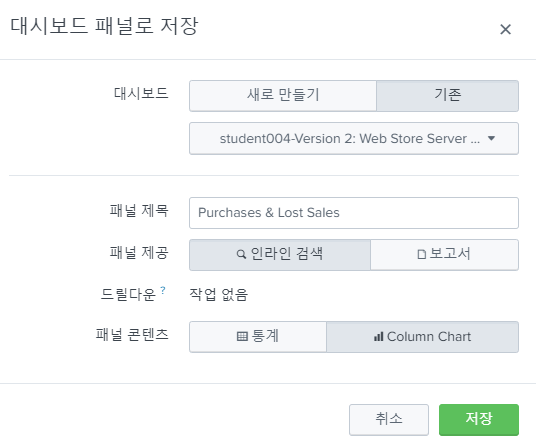

category	입력값
대시보드	기존
대시보드 제목	student004-Version 2: Web Store Server Errors
패널 제목	Purchases & Lost Sales
패널 제공	인라인 검색
패널 콘텐츠	Column Chart







<dashboard>
  <label>student004-Version 2: Web Store Server Errors</label>
  <search id="baseSearch">
    <query>sourcetype=access_combined | stats count, sum(price) as price by action, product_name, status, host</query>
    <earliest>-7d@d</earliest>
    <latest>now</latest>
    <sampleRatio>1</sampleRatio>
  </search>
  <row>
    <panel>
      <title>Purchases &amp; Lost Sales</title>
      <chart>
        <search>
          <query>action=remove OR action=purchase
| chart sum(count) as count over product_name by action
| rename product_name as "Product Name", remove as "Lost Sales", purchase as Purchases</query>
          <earliest>0</earliest>
          <sampleRatio>1</sampleRatio>
        </search>
        <option name="charting.axisLabelsX.majorLabelStyle.overflowMode">ellipsisNone</option>
        <option name="charting.axisLabelsX.majorLabelStyle.rotation">0</option>
        <option name="charting.axisTitleX.visibility">visible</option>
        <option name="charting.axisTitleY.visibility">visible</option>
        <option name="charting.axisTitleY2.visibility">visible</option>
        <option name="charting.axisX.abbreviation">none</option>
        <option name="charting.axisX.scale">linear</option>
        <option name="charting.axisY.abbreviation">none</option>
        <option name="charting.axisY.scale">linear</option>
        <option name="charting.axisY2.abbreviation">none</option>
        <option name="charting.axisY2.enabled">0</option>
        <option name="charting.axisY2.scale">inherit</option>
        <option name="charting.chart">column</option>
        <option name="charting.chart.bubbleMaximumSize">50</option>
        <option name="charting.chart.bubbleMinimumSize">10</option>
        <option name="charting.chart.bubbleSizeBy">area</option>
        <option name="charting.chart.nullValueMode">gaps</option>
        <option name="charting.chart.showDataLabels">none</option>
        <option name="charting.chart.sliceCollapsingThreshold">0.01</option>
        <option name="charting.chart.stackMode">default</option>
        <option name="charting.chart.style">shiny</option>
        <option name="charting.drilldown">none</option>
        <option name="charting.layout.splitSeries">0</option>
        <option name="charting.layout.splitSeries.allowIndependentYRanges">0</option>
        <option name="charting.legend.labelStyle.overflowMode">ellipsisMiddle</option>
        <option name="charting.legend.mode">standard</option>
        <option name="charting.legend.placement">right</option>
        <option name="charting.lineWidth">2</option>
        <option name="trellis.enabled">0</option>
        <option name="trellis.scales.shared">1</option>
        <option name="trellis.size">medium</option>
      </chart>
    </panel>
  </row>
</dashboard>

origin의 경우 위와 같다.

<dashboard>
  <label>student004-Version 2: Web Store Server Errors</label>
  <search id="baseSearch">
    <query>sourcetype=access_combined | stats count, sum(price) as price by action, product_name, status, host</query>
    <earliest>-7d@d</earliest>
    <latest>now</latest>
    <sampleRatio>1</sampleRatio>
  </search>
  <row>
    <panel>
      <title>Purchases &amp; Lost Sales</title>
      <chart>
        <search base="baseSearch">
          <query>action=remove OR action=purchase
| chart sum(count) as count over product_name by action
| rename product_name as "Product Name", remove as "Lost Sales", purchase as Purchases</query>
        </search>
        <option name="charting.axisLabelsX.majorLabelStyle.overflowMode">ellipsisNone</option>
        <option name="charting.axisLabelsX.majorLabelStyle.rotation">0</option>
        <option name="charting.axisTitleX.visibility">visible</option>
        <option name="charting.axisTitleY.visibility">visible</option>
        <option name="charting.axisTitleY2.visibility">visible</option>
        <option name="charting.axisX.abbreviation">none</option>
        <option name="charting.axisX.scale">linear</option>
        <option name="charting.axisY.abbreviation">none</option>
        <option name="charting.axisY.scale">linear</option>
        <option name="charting.axisY2.abbreviation">none</option>
        <option name="charting.axisY2.enabled">0</option>
        <option name="charting.axisY2.scale">inherit</option>
        <option name="charting.chart">column</option>
        <option name="charting.chart.bubbleMaximumSize">50</option>
        <option name="charting.chart.bubbleMinimumSize">10</option>
        <option name="charting.chart.bubbleSizeBy">area</option>
        <option name="charting.chart.nullValueMode">gaps</option>
        <option name="charting.chart.showDataLabels">none</option>
        <option name="charting.chart.sliceCollapsingThreshold">0.01</option>
        <option name="charting.chart.stackMode">default</option>
        <option name="charting.chart.style">shiny</option>
        <option name="charting.drilldown">none</option>
        <option name="charting.layout.splitSeries">0</option>
        <option name="charting.layout.splitSeries.allowIndependentYRanges">0</option>
        <option name="charting.legend.labelStyle.overflowMode">ellipsisMiddle</option>
        <option name="charting.legend.mode">standard</option>
        <option name="charting.legend.placement">right</option>
        <option name="charting.lineWidth">2</option>
        <option name="trellis.enabled">0</option>
        <option name="trellis.scales.shared">1</option>
        <option name="trellis.size">medium</option>
      </chart>
    </panel>
  </row>
</dashboard>

변경 사항은 아래와 같다.

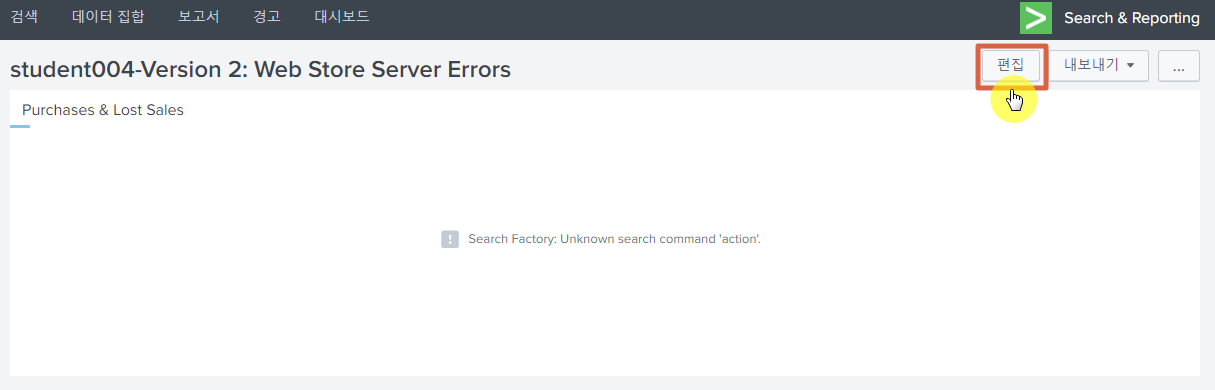

안나온다.

해당 내용을 확인하니 이상한 query가 들어가 있었다.

sourcetype=access_combined
| stats count, sum(price) as price by action, product_name, status, host
| action=remove OR action=purchase
| chart sum(count) as count over product_name by action
| rename product_name as "Product Name", remove as "Lost Sales", purchase as Purchases

action=remove OR action=purchase가 문제가 되는 부분이다.

sourcetype=access_combined
| stats count, sum(price) as price by action, product_name, status, host
| where action="remove" OR action="purchase"
| chart sum(count) as count over product_name by action
| rename product_name as "Product Name", remove as "Lost Sales", purchase as Purchases

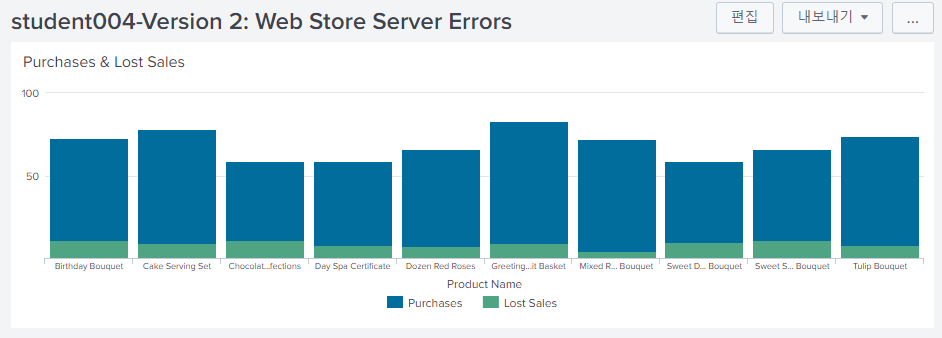

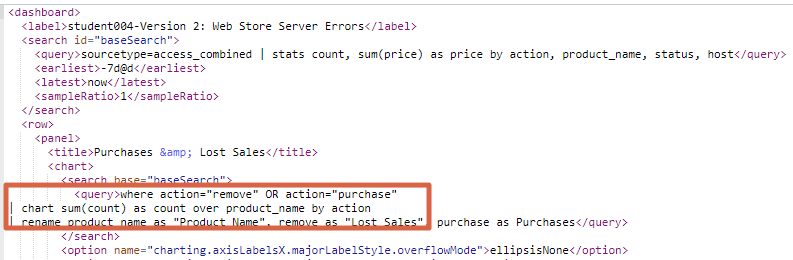

where action="remove" OR action="purchase"로 수정한다.

수정의 예
